上海淞江減震器集團有限公司官方網站為您介紹：【煙道補償器】鋼廠煙道通風補償器信息，淞江集團可以為客戶非標定做各種風道煙道補償器產品，可以良好的補償煙道的位移，也可以降低煙道的震動。
Shanghai Songjiang absorber group limited official website for your introduction: [] steel flue ventilation flue compensator compensator information, Songjiang group can provide customers with customized various non-standard air flue compensator can compensate the displacement of products, good flue, can also reduce the vibration of flue.

The rubber material of the rubber compensator of the air channel can choose three kinds of natural rubber, three yuan ethylene propylene rubber and three silicone rubber. The three kinds of rubber temperature resistance is as follows: natural rubber is below 80 degrees, three yuan, ethylene propylene rubber is below 120 degrees, and silicone rubber is below.

相關鏈接：振動篩橡膠軟連接打包發貨



使用案例：吉林省安圖縣集中供熱耐高溫硅橡膠撓性接頭合同

Use case

上海淞江減震器集團有限公司官方網站為您介紹：KFT型耐高溫風道橡膠補償器信息，淞江集團為高溫風機推薦耐高溫型風道橡膠補償器，最高可耐200高溫，采用硅橡膠生產而成，有效的防止風機的震動對煙囪的損壞。
Shanghai Songjiang absorber group limited official website for your introduction: KFT type high temperature resistant rubber duct compensation information, Songjiang group for high temperature fan recommended high temperature resistant rubber air duct compensator, the highest resistant to high temperature of , the use of silicone rubber production, effectively prevent the fan vibration damage to the chimney.

淞江集團風道橡膠補償器由橡膠和纖維織物復合材料、鋼制法蘭、鋼制限位桿組成，主要用于各種風機、風管之間的柔性連接，其功能是減震、降噪、密封、耐介質、便于位移和安裝，是環境保護領域中一種最為理想的減震、降噪、消煙除塵的首選配套件。

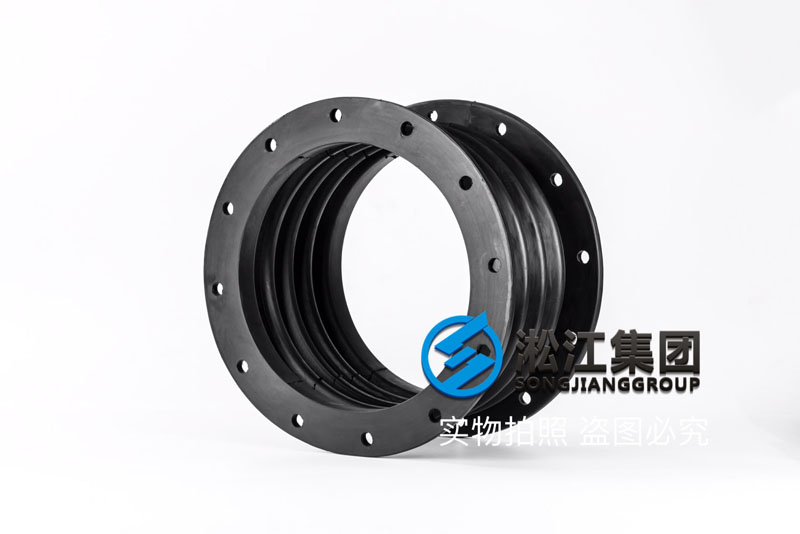

Shanghai Songjiang rubber air duct compensator which is made of rubber and fiber fabric composite material, steel flange, steel limit rod, mainly used for flexible connections between the various fan duct, its function is shock absorption, noise reduction, sealing, easy installation, medium resistance and displacement, is a field of environmental protection very good shock absorption, noise, smoke and dust with the best suite.

5 、風道橡膠補償器具有優異的氣密性和柔順性、能保證輸送介質無泄漏和反復位移后恢復原狀。

1, the air channel rubber compensator has good repeated displacement (change) reducibility, which can provide large multidimensional directional compensation in the smaller size range, and it can eliminate the multi-directional error produced by all kinds of pipeline installation and connection.

2. The air duct rubber compensator has the superior sound absorption and isolation function, and can effectively reduce and eliminate the transmission of sound and vibration of the system products such as boiler and fan.

3. The weak transmission loss of rubber and fiber reduces the design procedure and does not need to add other auxiliary facilities.

4, rubber and fiber fabric and heat insulation materials have high heat resistance and corrosion resistance, never rust, reduce maintenance costs.

5. The rubber compensator of the air duct has excellent air tightness and flexibility, and it can ensure that the conveying medium has no leakage and restores the original shape after repeated displacement.

風道橡膠補償器安裝簡要說明：

1 、安裝長度由用戶在設計中選定，訂貨時未注明者按 L=350mm 的供貨。

2 、表中重量按一般安裝長度 L=350mm 計算。

3 、風道橡膠補償器中間有支撐架，支撐架在安裝前應保持不脫，待螺栓上緊后將其全部打掉，以保證安裝合理，使其各項物理機械性能真正起到作用。

A brief description of the installation of rubber compensator for air duct:

1, the length of the installation is selected by the user in the design, and the unmarked order is supplied by the L=350mm.

2. The weight in the table is calculated according to the general installation length of L=350mm.

3, the air channel rubber compensator has a support in the middle. The support rack should remain unchanged before installation. After the bolts are tightened up, they will be knocked out to ensure that the installation is reasonable, so that all physical and mechanical properties will really play a role.風道橡膠補償器橡膠材質可以選擇天然橡膠、三元乙丙橡膠、和硅橡膠三種，這三種橡膠耐溫如下：天然橡膠80度以下，三元乙丙橡膠120度以下，硅橡膠200度以下。
The rubber material of the rubber compensator of the air channel can choose three kinds of natural rubber, three yuan ethylene propylene rubber and three silicone rubber. The three kinds of rubber temperature resistance is as follows: natural rubber is below 80 degrees, three yuan, ethylene propylene rubber is below 120 degrees, and silicone rubber is below .

相關鏈接：振動篩橡膠軟連接打包發貨
Related links

使用案例：吉林省安圖縣集中供熱耐高溫硅橡膠撓性接頭合同
Use case

上海淞江減震器集團有限公司官方網站為您介紹：ZB型 非金屬織物纖維補償器信息，該產品主要適用于鋼廠、電廠、水泥廠、化工廠等大型風機、管道減震處，具有良好的耐高溫效果。

主要材料構成：
ZB型非金屬織物纖維補償器是以性能優異的硅膠布（氟膠布）
聚四氟乙烯，無堿玻璃纖維布，保溫絕熱性能良好的超細
玻璃棉、硅酸鋁棉（高溫采用陶瓷纖維毯）等多種材料，
經特殊工藝制作而成。

產品特點：
補償量大：同一補償器可以滿足系統多維補償?shù)男枰?br /> 無反推力：由于自身材料的柔軟性，可無條件吸收前
一節管道的熱膨脹推力，而不向下一節傳遞。
耐高溫，耐腐蝕：使用的硅膠布（氟膠布），玻璃纖維，聚四氟乙烯等材料，具有良好的耐高溫和耐腐蝕性能。
消聲減震：纖維織物等非金屬材料本身具有良好的吸聲，隔絕振動傳遞的功能，能有效減少鍋爐、風機等設備所產生的噪聲和振動。

技術要求:
1 非金屬織物纖維補償器能長期安全運行，使用壽命不小于6年（每年7500運行小時）。
非金屬織物纖維補償器的常溫許用疲勞壽命取不小于1000次（疲勞壽命安全系數不小于15）。
2 非金屬織物纖維補償器在所有運行和事故條件下都應能吸收全部連接設備和煙風道的軸向和側向位移。
3 所有非金屬織物纖維補償器應設計成能無損害、無泄漏的，可承受各種高溫偏移范圍，
內置不銹鋼絲網,并且能承受可能發生的最大設計正壓和負壓加上1.25倍余量的壓力。
4 煙風道非金屬織物纖維補償器材料應能滿足承受煙氣和空氣的高溫及煙氣的腐蝕和磨損的要求。
非金屬織物纖維補償器及與煙風道的密封應是100％氣密性。對于煙道上的非金屬織物補償器內部的保溫應考慮煙氣的特性。
5 煙道及風道上的非金屬織物纖維補償器為室外露天布置，其材料應能滿足本附件中所提供的各種原始設計條件。
特別注意其材料應能耐冬季室外的低溫。
6 非金屬織物纖維補償器蒙皮外表面溫度不超過70℃。

Main materials:Fabric compensator is to the excellent properties of silicon adhesive tape of F, PTFE, no alkali
glass fiber cloth, heat insulation ofCan be good for the ultra fine glass wool, aluminum silicate cotton (high
temperature ceramic fiber blanket), and other materials, by special process.Product features:The compensation
amount is large: the same compensator can satisfy the need of multi dimensional compensation system.No anti thrust:
due to the softness of its own material, can not absorb the thermal expansion of the front section of the pipeline,
and not down a section.High temperature, corrosion resistance: using silicon adhesive tape of F, glass fiber,
such as Teflon material with good resistance to high temperature and corrosion resistance.The non - metallic
materials such as fabric and other non - metal materials themselves have good sound absorption, and the function
of isolating vibration transmission can effectively reduce the noise and vibration caused by boiler and air blower.
Installation error of compensation system.Good sealing.Simple structure, light weight, easy installation and
maintenance.Low cost, high performance price ratio.
